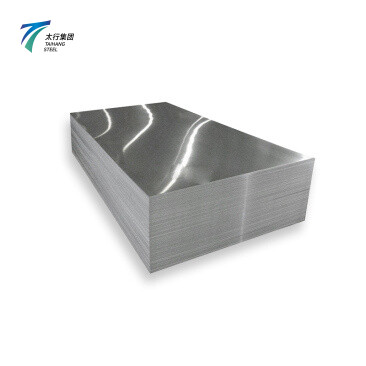

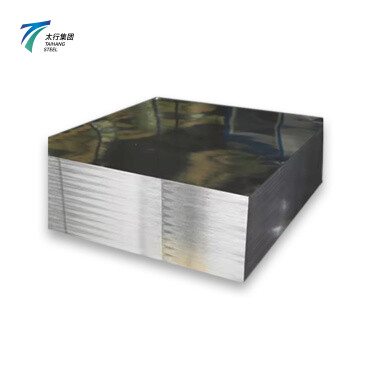

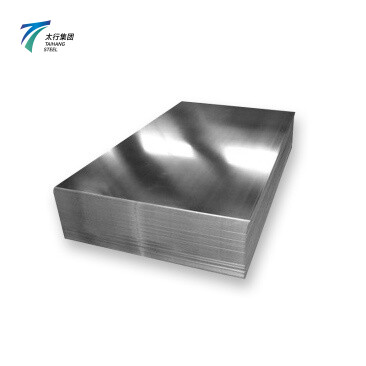

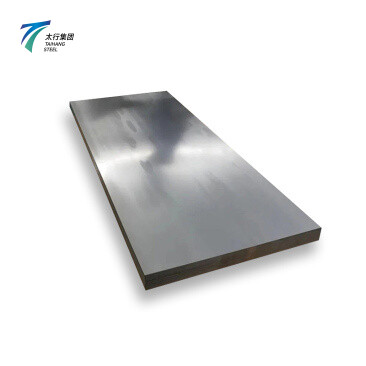

Tin-plated steel plate, commonly known as tinplate is a steel product with a stampable thin steel plate as the base, tin plating on the surface, and multiple protective films. It has the characteristics of corrosion resistance, non-toxic, odorless, glossy surface, light weight, high strength, easy to print, easy to weld and process, and has strong adaptability to ambient temperature. Single cold-reduced tinplate can be supplied with either a bright, silver, stone or matt finish, and the finish required shall be specified at the time of ordering. Single reduced cold-rolled tinplate is generally specified in nominal thicknesses that are multiples of 0,005 mm, from 0,150 mm up to and including 0,600 mm. It is widely used in food, beverage, grease, chemical, paint, paint, aerosol cans, bottle caps and many other daily necessities packaging, such as a variety of beverage cans, food cans, beer bottle caps and so on.
Product Parameters
| Product Name | Single Reduced Cold-Rolled Tinplate |
| Thickness | 0.18mm-0.50mm |
| Width | 260mm-980mm |
| Length | Support Customization |
| Tin Coating | General: 2.8g or 5.6g, Can be produced according to your needs |
| Substrate Type | MR / SPCC / L / D |
| Reference Standard | GB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203 |
Surface State of Tinplate
| Surface State | Features |
| Light Surface | Electroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern |
| Stonetextured Surface | Electroplating tin raw material with the glaze obtained after melting treatment,Grindstone pattern with certain direction |
| Silvercolor Surface | Electroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull |
| Mattless Surface | The surface of the substrate is rough and dull, and the tin plating layer is not soft melting |
Substrate Type
| Substrate Type | Introduction |
| MR | The most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance |
| L | Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate |
| D | Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial |
| SPCC | Chinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes. |
Coating Weight
| Classification | Representation of Tin Coating Weight | Tin Plating Nominal Weight (g/m2) | Minimum Average Tin Plating Weight (g/m2) |
| Equal Tin Plating (E) | 1.1/1.1 | 1.1/1.1 | 1.8 |
| 2.2/2.2 | 2.2/2.2 | 4.0 |
| 2.8/2.8 | 2.8/2.8 | 5.0 |
| 5.6/5.6 | 5.6/5.6 | 10.5 |
| Differentiated Tin Plating (D/A) | 2.2/1.1 | 2.2/1.1 | 2.0/0.9 |
| 2.8/1.1 | 2.8/1.1 | 2.25/0.9 |
| 5.6/1.1 | 5.6/1.1 | 5.05/0.9 |
| 2.8/2.2 | 2.8/2.2 | 2.25/2.0 |
| 5.6/2.2 | 5.6/2.2 | 5.05/2.0 |
| 5.6/2.8 | 5.6/2.8 | 5.05/2.25 |
Chemical Composition
| No. | C | Si | Mn | S | P | Cu | Ni | Cr | Mo |
| D | 0.12 | 0.03 | 0.6 | 0.05 | 0.02 | 0.2 | 0.15 | 0.1 | 0.05 |
| L | 0.13 | 0.03 | 0.6 | 0.05 | 0.15 | 0.03 | 0.04 | 0.06 | 0.05 |
| MR | 0.13 | 0.03 | 0.6 | 0.05 | 0.2 | 0.2 | 0.2 | 0.1 | 0.05 |
Mechanical Properties & Applications
| Standard Name | Nominal Hardness HR30TS | Strong Yield MPA | Scope of Application |
| T-1 | 49 | 230 /-50 | Drawing requirements, drawn ironing cans, nozzles, nozzles, closures |
| T-2 | 53 | 245 /-50 | Ring and plug, dome, closure, shallow pull and special tank parts |
| T-2.5 | 55 | 260 /-50 | Battery cell, small can cover and body |
| T-3 | 57 | 275 /-50 | Cans and cans, large diameter caps, crown caps |
| T-3.5 | 59 | 290 /-50 | Can body, closure and crown lid |
| T-4 | 61 | 340 /-50 | Can body, closure and crown lid |
| T-5 | 65 | 480 /-50 | Cans and cans |
Ordering Notes
The ordering elements for tin plating generally include: standard grade (including steel grade code, annealing method and other information such as MR T-3 CA), size (the default order is thickness * width * length, tin plating amount ((different thickness plating) Tin needs to add A/D as the marking line mark, if not, no marking line will be marked), surface, order quantity, etc.
When ordering tin plating, please confirm with our sales staff the end use, such as canbody, ends, twist off caps, crown cork, EOE, etc., as well as the contents, special contents such as milk powder, high protein food, mushrooms, fruits, etc.;
