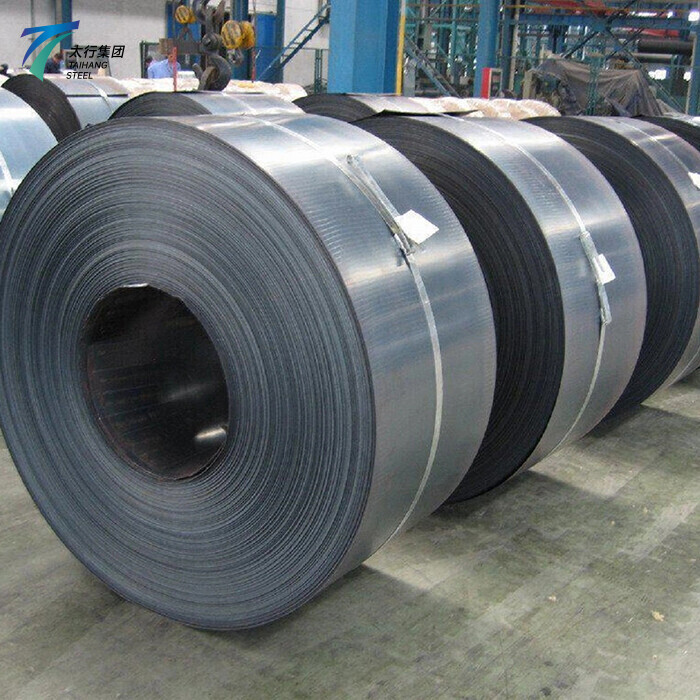

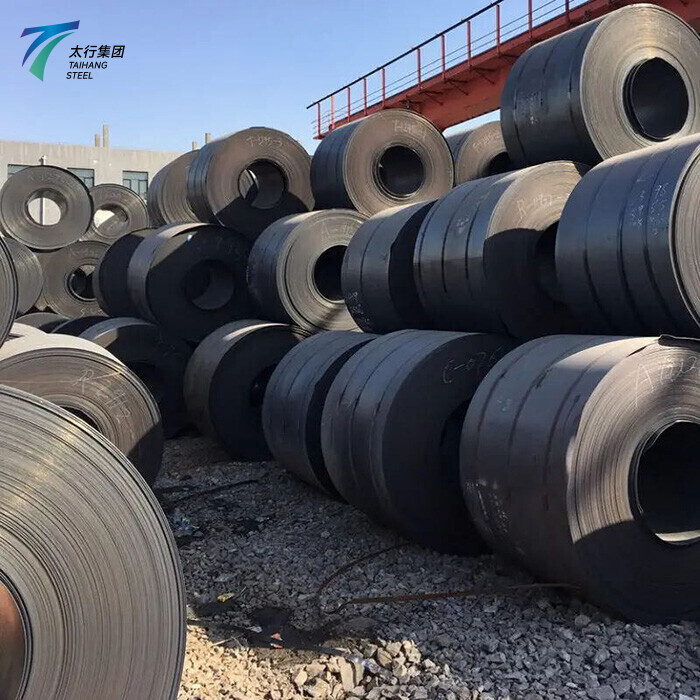

SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil

SPCC steel is produced by subjecting hot rolled steel to a cold rolling process, which not only improves its surface finish but also enhances its mechanical properties.

Mobile/Wechat：+8615964550797

WhatsApp : +8615964550797

Email : kitty@taihang-metal.com

— Product Parameters —

SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil

SPCC steel coil comes with impressive properties, making it an ideal choice across various industries. A key advantage is its high tensile strength, giving it the capacity to deal with heavy loads and resist deformation. So SPCC steel coil is especially suitable for applications requiring superior durability and structural integrity. Another notable feature of SPCC steel coil is its excellent formability as the coil can be easily shaped and molded into different sizes and dimensions without compromising its structural integrity. This flexibility makes it suitable for manufacturing processes like stamping, bending and deep drawing. SPCC steel coils have a uniform appearance that adds a professional feel to finished products using this material. Additionally, this surface helps greatly in preventing corrosion, thus extending the life of the coils.

Product Parameters
Product Name	SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm
Thickness	Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

SPCC Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035

SPCCT Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035

SPCD Grade: : C≦0.10; Mn≦0.50; P≦0.040; S≦0.035

SPCE Grade: C≦0.08; Mn≦0.45; P≦0.030; S≦0.030

SPCF Grade: C≦0.06; Mn≦0.45; P≦0.030; S≦0.030

SPCG Grade: C≦0.02; Mn≦0.25; P≦0.020; S≦0.020

Mechanical Properties

Hardness: Heat Treatment Code HRBS HV10

Annealed A – –

Annealed + Finishing S – –

1/8 hard 8 50~71 95~130

1/4 hard 4 65~80 115~150

1/2 hard 2 74~89 135~185

Full hard 1 ≥85 ≥170

Scope of Application

SPCC/SPCCT: Common & General Use; Characteristics: Suitable for bending processing and simple deep drawing processing, is the most demand varieties; Applications: Refrigerators, rails, switchboards, iron baskets and so on.

SPCD: Drawing & Stamping Use; Characteristics: Second only to SPCE, is the quality of the smaller deviation of the drawing steel plate; Applications: Automobile chassis, roof and so on.

SPCE/SPCF: Deep Drawing & Stamping Use; Characteristics: Grain is adjusted, deep drawing performance is excellent, after the stamping can get a beautiful surface. Applications: Car fender, rear side panels and so on.

SPCG: Extra-Deep Drawing & Stamping & Punching Use; Characteristics: Very low carbon cold rolled steel, excellent deep drawing processability. Applications: Car interior board, surface and so on.

Remarks: SPCCT is users specified the grade of SPCC which need to ensure that the tensile strength and extensibility of the species. SPCF, SPCG will need to ensure that there have non-aging (not due to the occurrence of tensile deformation of the property), after outside factory for 6 months – that is, SPCC, SPCD, SPCE if stored for a long time, will produce mechanical performance changes, especially to reduce the cold stamping performance, it should be used as soon as possible.SPCC series catalog need to make provision for hardness and surface in advance when ordering.

— Product Display —

— Product Application —

— Product Packaging —

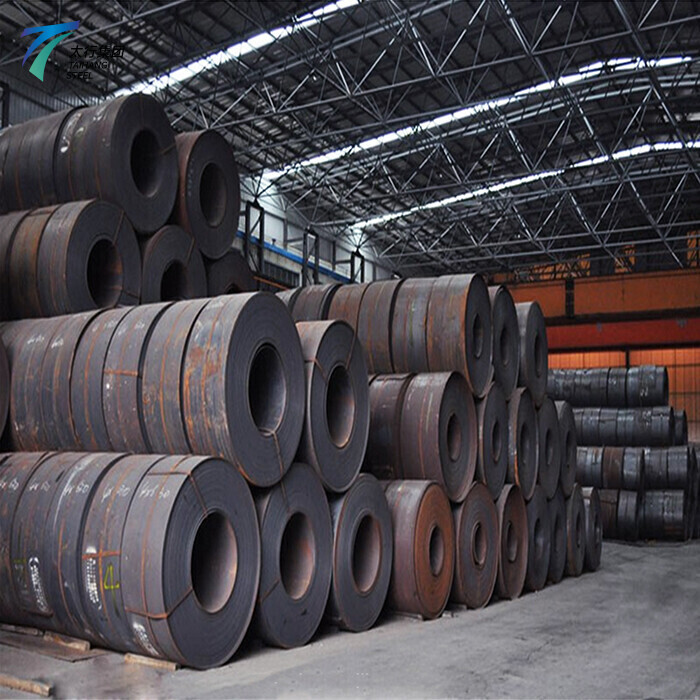

— Factory Display —

— Faq —

Q: Are You Manufacture or Trade Company?

A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?

A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?

A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?

A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?

A: Yes, we have a strong developing team. The products can be made according to your request.
